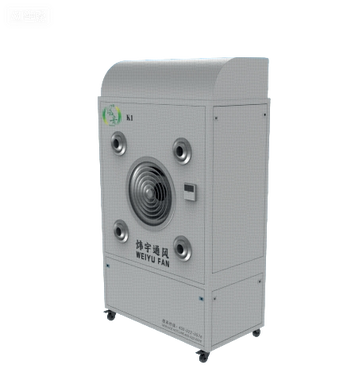

PORTABLE INTEGRATED AIR CONDITIONER

ZHEJIANG WEIYU® VENTILATION ELECTROMECHANICAL CO.,LTD. located in Wenling, a beautiful coastal city and the first place where the Millennium Dawn shines,founded in 2006.It is the first Chinese manufacturing enterprise specializing in the production of large industrial fans,has been awarded national high-tech enterprise. WEIYU® is a comprehensive company whose main business includes industrial fan manufacturing, installation services,machinery manufacturing, etc.,which is one of the major manufacturers and suppliers of industrial fans in China. WEIYU® has independent R&D,production,installation and after-sales teams, advanced production equipmentand complete testing facilities,passed ISO9001 international quality management system certification,and got CE\IEC\ROHS\LVD\EMC and other certificates. With the mission of creating a spring for the industrial environment, WEIYU® implements strategic development,adheres to innovation-driven development, focuses on quality and efficiency,and accelerates the transformation of development methods. The fully new factory was established in 2023 to better realize the integration of products from intelligent manufacturing to after-sales integrated services. By 2030,the main indicators will reach the world's advanced level, comprehensively improve competitiveness and profitability,and become the leader of green and sustainable large-scale industrial fans.

WEIYU®'s main products are PMSM fans,HVLS fans,and energy-saving industrial fan series， they are leaders in the large-scale industrial fan industry,covering various industries such as automobiles,motorcycle parts,electrical appliances,manufacturing, logistics,shoes and clothing, and foreign companies, including Industry,agriculture,animal husbandry and other industries.WEIYU® adheres to the business philosophy of "innovation,quality,integrity,and integration",takes humanistic care as the carrier,and strives to become the procurement center of the world's fan industry and the leader of the fan industry.

                                                                             PORTABLE INTEGRATED AIR CONDITIONER

Product features:
Innovative cooling tech – Efficient & reliable refrigeration
Portable & user-friendly – Easy to operate and movePrecision temp control – Stable and accurate
Premium OEM parts – High quality for strong performance
Optimized cooling – Fast & consistent chilling
Safety protections – Anti-freeze & leak detection

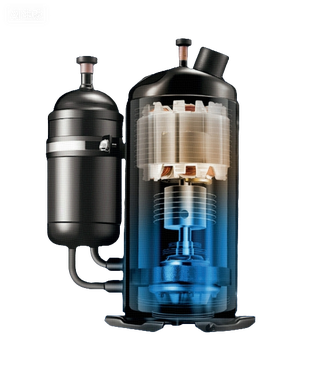

                                                                                                          ADOPT HIGHLY COMPRESSOR

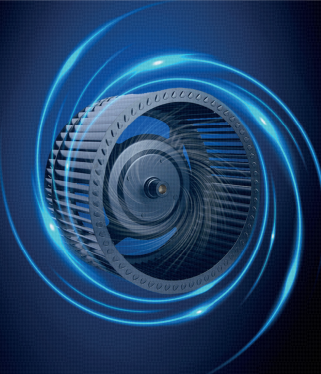

High speed centrifuge, greater air volume, more obvious cooling
Intelligent ControlFault Diagnosis Powerful Core

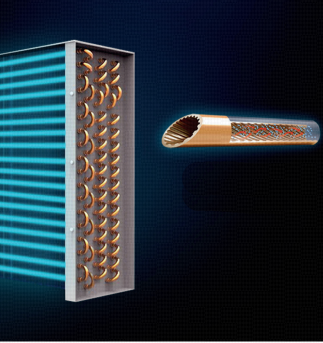

Multi-row copper tube design significantly increases heat exchange area, improving cooling efficiency by 30-50%

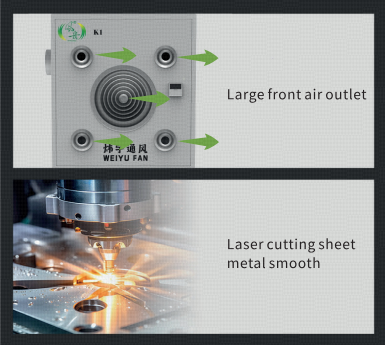

Meticulous craftsmanship is evident in every detail.

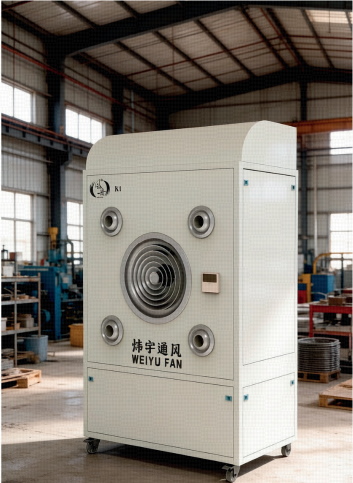

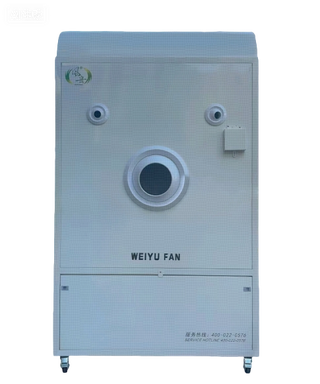

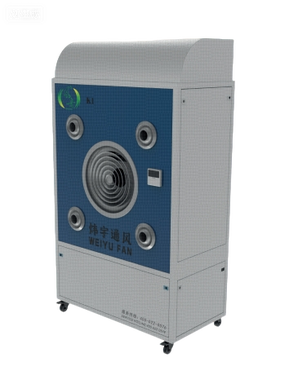

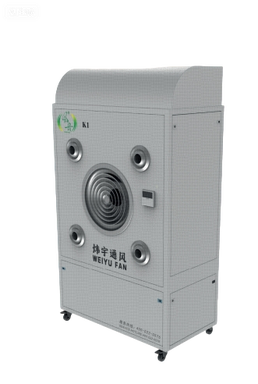

Portable Integrated Air Conditioner
This innovative cooling system featuresa highly integrated modular design combining compressor condenser and control system into a single mobile unit.
Key highlightsinclude：
1.Eco-friendly R410A refrigerant (low GWP) meeting international environmental standards
2.+0.5°C precision temperature control
3.30% higher energy efficiency than conventional systems
4.Plug-and-play operation requiring no complex installation
5.Multi-scenario applications (cold chain logistics, emergency cooling, etc.)
6.Comprehensive safety protections (over-pressure alarm, leakage detection
Thespace-saving design enables flexible deployment for temporary/seasonal use while supporting sustainable development goals through energy-saving operation and eco-friendly refrigerants.

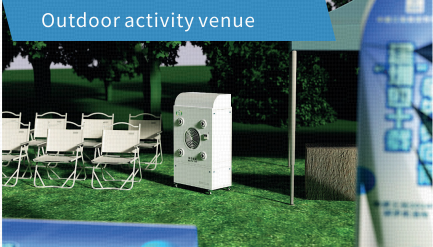

During summer camping activities, both the fan and air conditioning are ineffective. The integrated refrigeration unit can achieve localized air conditioning delivery,achieving a comfortable environment


The sports stadium is an open venue where the heat and humidity cannot be dissipated. The use of an integrated refrigeration system can continuously create cold air for the area


In summer, when picking up food in the wilderness and barbecuing,the area near the barbecue stall is hot and humid. You can use an integrated refrigeration machine to blow out cold air and bring coolness to people

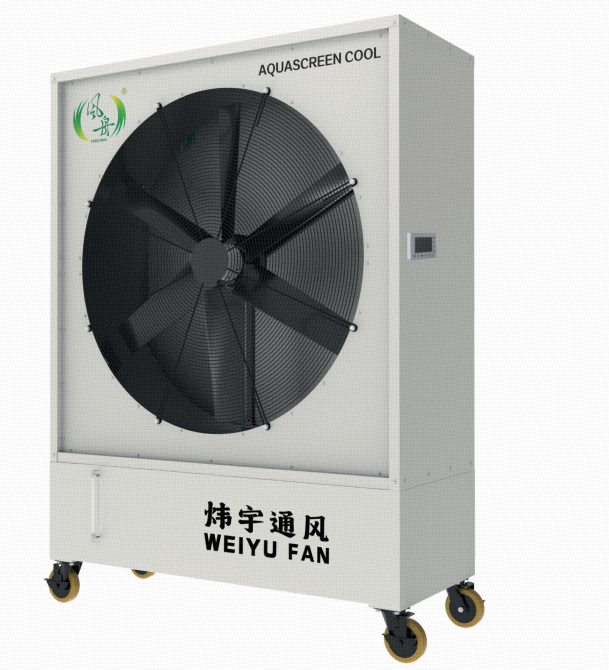

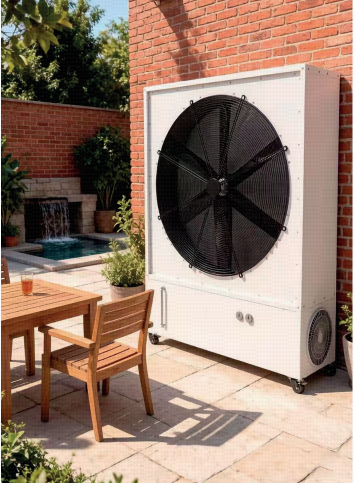

Aquascreen Cool ™ Mobile Air Cooler
Utilizes the natural physical principle of water evaporation and heat absorption to achieve efficient cooling.

Designed to provide you with a fresh, cool, and healthy air environment, while significantly reducing energy consumption and operating costs.

Wet Curtain System: The unit is equipped with a special corrugated honeycomb paper wet curtain (multi-layer corrugated fiber composite), which has a large surface area and strong water absorption capacity.

Water Circulation: A water pump continuously draws water from the tank and evenly sprays it over the wet curtain, ensuring it is fully saturated.

Heat Exchange Process: When the fan operates, it creates negative pressure inside the cavity, drawing in hot outdoor air. The hot air is forced through the moist wet curtain, where water rapidly evaporates, absorbing significant latent heat from the air, thereby cooling the air itself.

Humidity Increase: Adds humidity in dry environments, preventing skin dryness.

Wide Range of Applications
Industrial Manufacturing: Factory workshops (electronics, textiles, footwear, plastics, machinery, etc.), warehouses and logistics, equipment heat zones.

Commercial Spaces: Shopping malls, supermarkets, restaurant kitchens, internet cafes, hotel lobbies, gyms, exhibition halls.

Public Areas: Offices, meeting rooms, school classrooms, hospitals, entertainment venues, waiting rooms.

Outdoor & Temporary Sites: Outdoor events, temporary construction sites, ticket booths, security check channels, tent cooling.

Specific Needs: Spaces requiring increased air humidity.

Model	Rated Voltage Frequency	Rated Power	Max Speed	Max Air Volume	Usage Environment	Dimensions	Sound Level	Blade Qty	Weight
WY-SP1530	220V 50-60HZ	980W	500rpm	28490m³/h	18°C~45°C	15806601990	≤65dB(A)	6pcs	145kgs
WY-SP1380	220V 50-60HZ	980W	600rpm	24200m³/h	18°C~45°C	14406601840	≤65dB(A)	6pcs	132kgs
WY-SP1220	220V 50-60HZ	980W	630rpm	20500m³/h	18°C~45°C	12806601680	≤65dB(A)	6pcs	120kgs

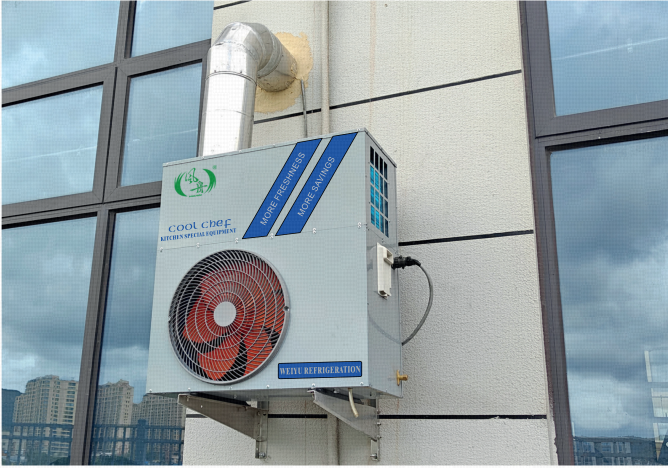

KITCHEN AIR CONDITIONER


INNER STRUCTURE

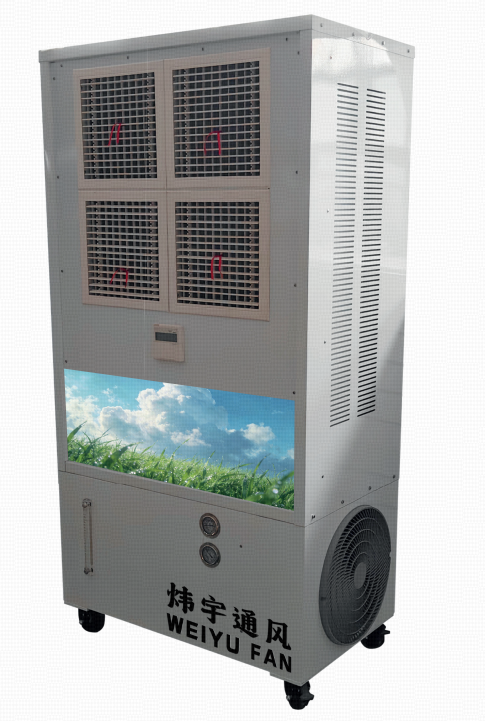

Portable High-Efficiency Water Curtain Air Cooler

PRODUCT PARAMETERS AND INTRODUCTION

This product is a high-power portable environmental cooling and refrigeration unit specifically designed for industrial, commercial, and large open/semi-open spaces.

Integrating the advantages of industrial air coolers, water-cooled air conditioners, and central cooling systems, it overcomes the limitations of traditional enclosed air conditioning and the weak cooling effect of conventional water-curtain fans. It achieves rapid, stable, and efficient cooling in open spaces, providing a professional solution for high-temperature environment cooling, localized temperature control, and ventilation heat dissipation.

The core of the device relies on a compressor-based refrigeration system, which first deeply chills the water stored in the built-in tank. A circulating water pump then evenly delivers the cold water to the heat-exchange water curtain inside the unit, forming a high-density, constant-temperature cold water curtain. Coupled with a high-power forced ventilation system, external hot air is powerfully drawn into the unit, where the airflow penetrates the entire low-temperature water curtain layer, enabling efficient and thorough sensible and latent heat exchange. This rapidly lowers air temperature while adjusting humidity, ultimately delivering constant-temperature, clean, and cool air through the front-mounted fan.

The system achieves rapid cooling and air circulation in large, open areas, with cooling efficiency far surpassing that of traditional evaporative air coolers. Equipped with dual-core cooling technology—closed water-curtain heat exchange and forced convective ventilation—along with an efficient refrigeration compressor, quiet circulating water pump, and high-airflow axial fan, it ensures stronger cooling, more efficient heat exchange, longer air delivery, and more uniform temperature reduction. It addresses industry pain points such as the inability of traditional air conditioners to operate in open workshops, factories, outdoor stalls, warehouses, and other scenarios, as well as the limited cooling capacity and poor performance of ordinary air coolers in high-temperature conditions.

The unit features an integrated vertical design with a fully metal sheet-constructed body for robust durability. Equipped with universal heavy-duty casters at the base, it requires no installation—simply plug in and use, and move freely to flexibly switch cooling areas, meeting multi-point and mobile cooling needs. It quickly dissipates accumulated heat in targeted areas, improving hot, stuffy, and poorly ventilated working and activity environments. Additionally, during the cooling process, it moderately humidifies the air to prevent dryness. With ventilation, air exchange, and multiple functions combined into one machine, it offers higher cost-effectiveness.

Wide Range of Applications

Industrial Manufacturing: Factory workshops (electronics, textiles, footwear, plastics, machinery, etc.), warehouses and logistics, equipment heat zones.Commercial Spaces: Shopping malls, Supermarkets, restaurant kitchens, internet cafes, hotel lobbies, gyms, exhibition hallsPublic Areas: Offices, meeting rooms, school classrooms, hospitals, entertainment venues, waiting rooms.

Outdoor & Temporary Sites: Outdoor events, temporary construction sites, ticket booths, security check channels, tent cooling.

Specific Needs: Spaces requiring increased air humidity.

Model	Rated Voltage	Rated Power	Refrigeration Capacity	Max Air Volume	Compressor	Usage Environment	Refrigerant	Dimensions	Weight
WY-GP2000	380V 50-60HZ	2.2KW	5040W 1.43ton / 17200 BTU/h	49000m³/h	HIGHLY®	18°C~45°C	R410A	11007002080	218kgs
