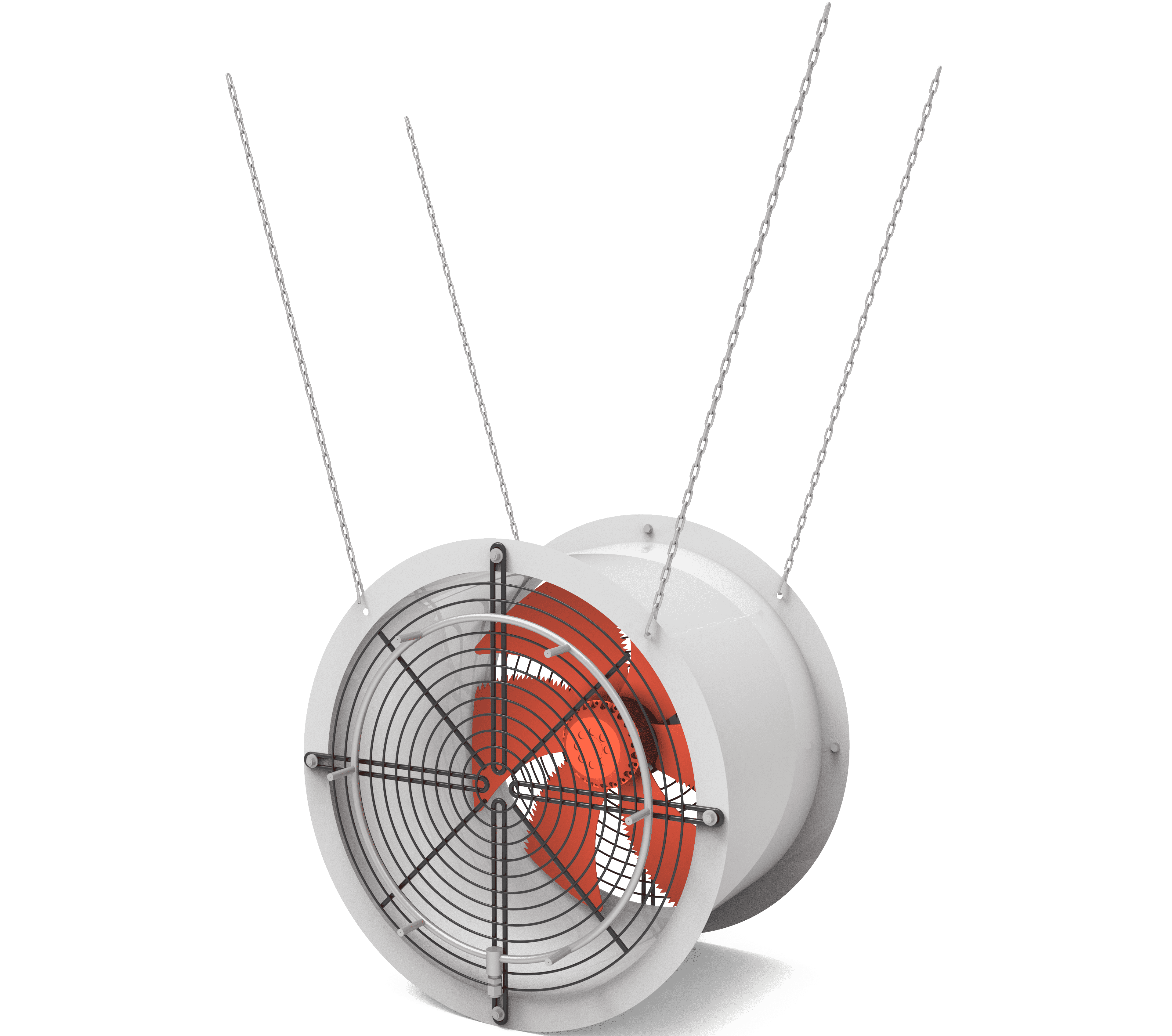

Engineered for demanding continuous operation, the ZJWY hanging mist fan incorporates advanced structural features that prioritize operational longevity, energy safety, and maintenance simplicity:
Heavy-Duty Overhead Suspension System: Features reinforced steel mounting brackets and multi-point vibration-absorbing hardware, enabling secure ceiling attachment and freeing up valuable floor workspace.
Centrifugal Atomization Technology: Utilizes a high-speed centrifugal disk system that eliminates nozzle blockage issues commonly found in high-pressure mist systems. The centrifugal hanging mist fan produces continuous, fine mist without clogging from mineral deposits.
Industrial-Grade Enclosed Copper Motor: Built with an IP55-rated waterproof and dustproof copper motor featuring thermal overload protection, ensuring smooth operation in high-humidity and high-dust environments.
Corrosion-Resistant Housing: Constructed from UV-stabilized engineered polymers and powder-coated steel components to resist chemical degradation, humidity damage, and environmental weathering.
Adjustable Water Volume Control: Equipped with an integrated flow adjustment valve, allowing facility managers to tune mist output based on ambient temperature and relative humidity levels.
The versatile design of the hanging mist fan makes it an optimal thermal control solution for diverse industrial, agricultural, and commercial settings requiring overhead air distribution:
Livestock and Poultry Farming: Ideal for poultry houses, dairy barns, swine facilities, and stables. The overhead mist fan system provides vital environmental cooling, reduces heat stress in livestock, stabilizes milk yield, and optimizes animal growth cycles without wetting ground bedding.
Agricultural & Commercial Greenhouses: Provides precise humidity management and temperature reduction for floral propagation, vegetable cultivation, and botanical gardens. The ultra-fine mist generated by the centrifugal hanging mist fan dissipates rapidly, maintaining optimal photosynthesis conditions without causing foliar fungal diseases.
Industrial Manufacturing & Warehousing: Essential for textile mills, wood processing plants, paper mills, metal fabrication shops, and distribution hubs. The industrial hanging mist fan suppresses airborne dust particles, mitigates static electricity buildup, and lowers localized heat loads around heavy machinery.
Commercial & Outdoor Leisure Venues: Used in outdoor dining patios, resort verandas, sports arenas, theme parks, and public event spaces. The space-saving hanging mist fan enhances visitor comfort during peak summer heat while maintaining clear ground walkways.
| Model | Rated Voltage | Rated Power | Diameter | Rotation Speed | Max Air Volume | Noise | Blade | N.W. |
|---|---|---|---|---|---|---|---|---|
| WYFJ-P530 | 220V 50-60Hz | 410W | 0.53M (20.8inch) | 1350rpm | 96m³/min | ≤65dB(A) | 6 pcs | 16.5kg |
| WYFJ-P480 | 220V 50-60Hz | 210W | 0.48M (18.9inch) | 1450rpm | 72m³/min | ≤65dB(A) | 6 pcs | 14kg |
| WYFJ-P380 | 220V 50-60Hz | 140W | 0.38M (15inch) | 1450rpm | 41m³/min | ≤65dB(A) | 6 pcs | 10kg |
From an engineering perspective, the hanging mist fan delivers exceptional thermodynamic efficiency. By leveraging latent heat of vaporization, the unit atomizes micro-water particles that absorb heat energy directly from surrounding ambient air as they evaporate. The integrated high-velocity axial fan blade redistributes cooled air across wide radii, creating a uniform microclimate zone.
Unlike conventional floor-standing units that create localized dampness, the overhead mist fan system utilizes elevated height to extend evaporation time. Water droplets evaporate completely before reaching floor level, preserving equipment, inventory, and floor dry conditions. Furthermore, the centrifugal atomization disk requires minimal filtration compared to standard high-pressure nozzle systems, significantly lowering routine maintenance overhead and operational downtime.
Investing in the ZJWY hanging mist fan provides substantial financial and operational returns for industrial and commercial enterprise buyers:
Energy-Efficient Thermal Control: Consumes up to 80% less electrical energy compared to traditional compressor-based HVAC air conditioning systems, drastically reducing monthly utility overhead in large facility spaces.
Enhanced Workforce Productivity: Maintaining comfortable ambient temperatures in manufacturing plants reduces heat-induced fatigue, improves worker concentration, and lowers occupational heat stress risks.
Reduced Maintenance Costs: The nozzle-free centrifugal hanging mist fan design resists mineral clogging and sediment accumulation, reducing replacement component costs and service frequency.
Optimized Space Utilization: Ceiling suspension eliminates floor footprint, reducing accidental equipment collision risks with forklifts or machinery in busy warehousing facilities.
B2B Service Note: ZJWY is a direct OEM/ODM manufacturer providing bulk order customization, competitive factory-direct pricing, global logistics support, and professional post-sale technical guidance.
