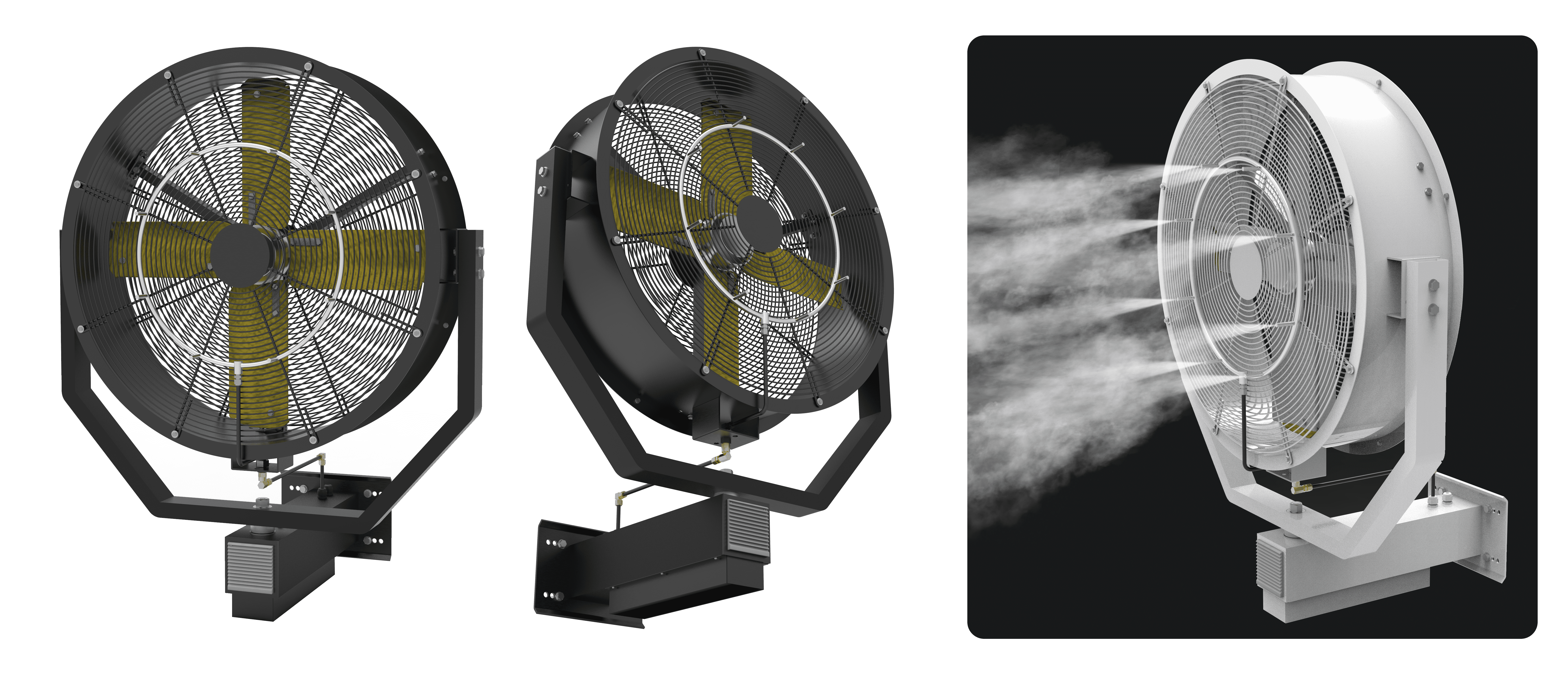

Overview
The PMSM wall mounted oscillation fan utilizes a direct-drive Permanent Magnet Synchronous Motor outperforming traditional AC induction designs. PMSM technology employs rare-earth permanent magnets within the rotor, generating strong magnetic fields without energy losses from electromagnetic excitation. This DC energy saving fan converts electrical power into mechanical airflow with minimal waste, achieving IE4 premium efficiency standards.
The integrated electronic drive controller enables smooth variable speed operation across the full performance range. Unlike conventional fans limited to fixed speeds, this wall mount oscillating fan adjusts output precisely to match real-time ventilation demands. The sinusoidal current waveform produces consistent torque delivery, reducing vibration and extending component life.
Features:
It can reduce dust, purify air, increase air humidity and reduce static electricity. The 50L tank can spray continuously for 4.5 hours after being filled with water. Air volume controller and spray controller make it easy for you to find the best spray speed for your place. The fan can also rotate and shake its head, with a rotation angle of 130 degrees. The power of the spray pump is 180W. In addition, you can customize a single pump and a water pump tank.
High-Efficiency PMSM Motor At the core of this industrial wall fan sits a precision-engineered PMSM motor with brushless construction. The absence of wearable brushes and commutators removes common failure points. Gearless direct-drive architecture channels maximum energy into blade rotation rather than dissipating power through mechanical losses. This energy efficient ventilation fan maintains stable performance under continuous duty cycles in demanding environments.
Automatic Oscillation Mechanism The intelligent oscillation system sweeps horizontally across wide angles, ensuring comprehensive air coverage throughout large rooms. This PMSM wall mounted oscillation fan avoids stagnant zones by continuously redirecting airflow toward corners and distant walls. The oscillation drive operates independently with smooth acceleration, minimizing mechanical stress.
Exceptional Energy Savings As a leading DC energy saving fan, this unit reduces electricity consumption by up to 70% compared to equivalent AC motor models. The high power density of PMSM technology enables substantial airflow from a compact motor package. Facility managers benefit from lower utility bills while maintaining effective air circulation across production floors and storage areas.
Durable Industrial Construction This industrial wall fan features heavy-duty aluminum alloy blades precision-balanced for smooth rotation. The motor enclosure carries an IP55 protection rating, resisting dust ingress and water spray. Corrosion-resistant fasteners and powder-coated surfaces withstand harsh conditions in manufacturing and agricultural settings.
Quiet Operation PMSM motors generate significantly less acoustic noise than conventional alternatives. The sinusoidal control method and brushless design remove brush arcing noise. Combined with aerodynamically optimized blades, this wall mount oscillating fan operates below 45 decibels at typical speeds, preserving workplace comfort.
Application:
- Industry: Factories, Workshops, Warehouses and other areas that generate thermal effects
- Agriculture: Agricultural Stock Yards; Animal and Poultry Farms
- Commerce: Stadiums, Amusement parks, Large squares, Events & Exhibition Halls
-
Religious places: Churches, Mosques, Temples
Manufacturing and Production Facilities The PMSM wall mounted oscillation fan manages air quality across assembly lines and fabrication shops. Heat-generating equipment creates localized temperature zones that this energy efficient ventilation fan disperses through continuous air movement. Welding fumes and airborne particles circulate toward extraction systems, contributing to healthier conditions.
Warehouses and Logistics Centers Large storage buildings experience temperature stratification, with warm air collecting overhead. Strategic placement of this wall mount oscillating fan disrupts thermal layers, promoting uniform temperatures. The DC energy saving fan operates economically during extended hours, controlling costs in expansive facilities.
Agricultural Buildings Livestock barns and greenhouses require reliable ventilation for animal health and crop quality. This industrial wall fan provides consistent air circulation without generating excessive noise. The moisture-resistant construction endures high-humidity agricultural environments.
Food Processing and Commercial Kitchens Proper air circulation controls odors and moisture in food service operations. The energy efficient ventilation fan supports hygiene standards by keeping air in constant motion. Blade surfaces feature easy-clean designs that simplify sanitation procedures.
Workshops and Technical Spaces Automotive bays and fabrication workshops require targeted ventilation to remove welding smoke and dust. The oscillation function ensures thorough coverage, improving visibility and respiratory comfort for technicians.
Commercial Value
Selecting this PMSM wall mounted oscillation fan generates substantial financial returns through reduced energy consumption. Many facilities recover the initial investment through utility savings within two to three years. Extended operational lifespan and minimal maintenance further decrease ownership costs.
Lower electricity usage reduces carbon emissions, supporting corporate sustainability objectives. Numerous regions offer efficiency rebates for installing premium-efficiency equipment, accelerating payback periods. Equipment reliability remains critical for operations running multiple shifts. The brushless PMSM motor minimizes unexpected downtime, ensuring ventilation continues during production periods.
| Model |
Rated Voltage |
Rated Power |
Rated Current |
Diameter |
Max Speed |
Max Air Volume |
Flow |
Capacity |
Sound Level |
Blade Qty |
N.W. |
| WYFJ-P900 |
220V 50~60Hz |
500W |
3.8A |
0.9M(36inch) |
750rpm |
280m³/min |
0-15L/h |
50L |
≤65dB(A) |
4pcs |
92kg |
Technical Advantages
PMSM direct-drive systems achieve approximately 13.6% higher overall efficiency than geared configurations by removing gearbox friction and optimizing magnetic flux paths. Electronic commutation provides instantaneous torque response without high starting current surges typical of AC motors. The DC energy saving fan operates smoothly across variable speed ranges, giving operators unmatched flexibility in managing airflow.
Thermal performance represents another key benefit. PMSM motors transform electrical energy into mechanical work with minimal resistive losses, maintaining safe operating temperatures. Lower thermal stress extends insulation life and preserves bearing lubricant properties. The motor controller monitors winding temperature continuously, adjusting output if abnormal conditions arise.
